Back to basics: Shard your data

1 ElasticSearch Index <=> N shards

Back to basics:
Distribute the shards

Back to basics:
Routing

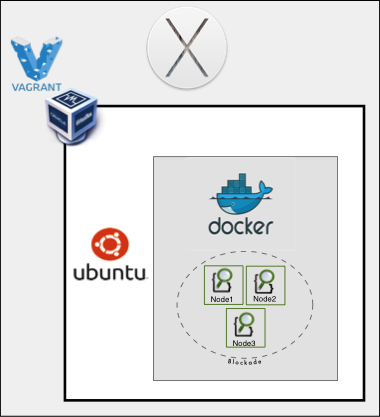

Setup for the demo

Tooling for our demos

five nodes cluster (ElasticSearch version : 1.4.0)

JMeter (slightly) randomized test plan

simple node cluster for monitoring

Use case #1: Machine crashes

IRL: Server un-plugged, hard-disk drive failure, etc.

Simulation: Stopping a node

What should we expect?

Nada!

How's that?

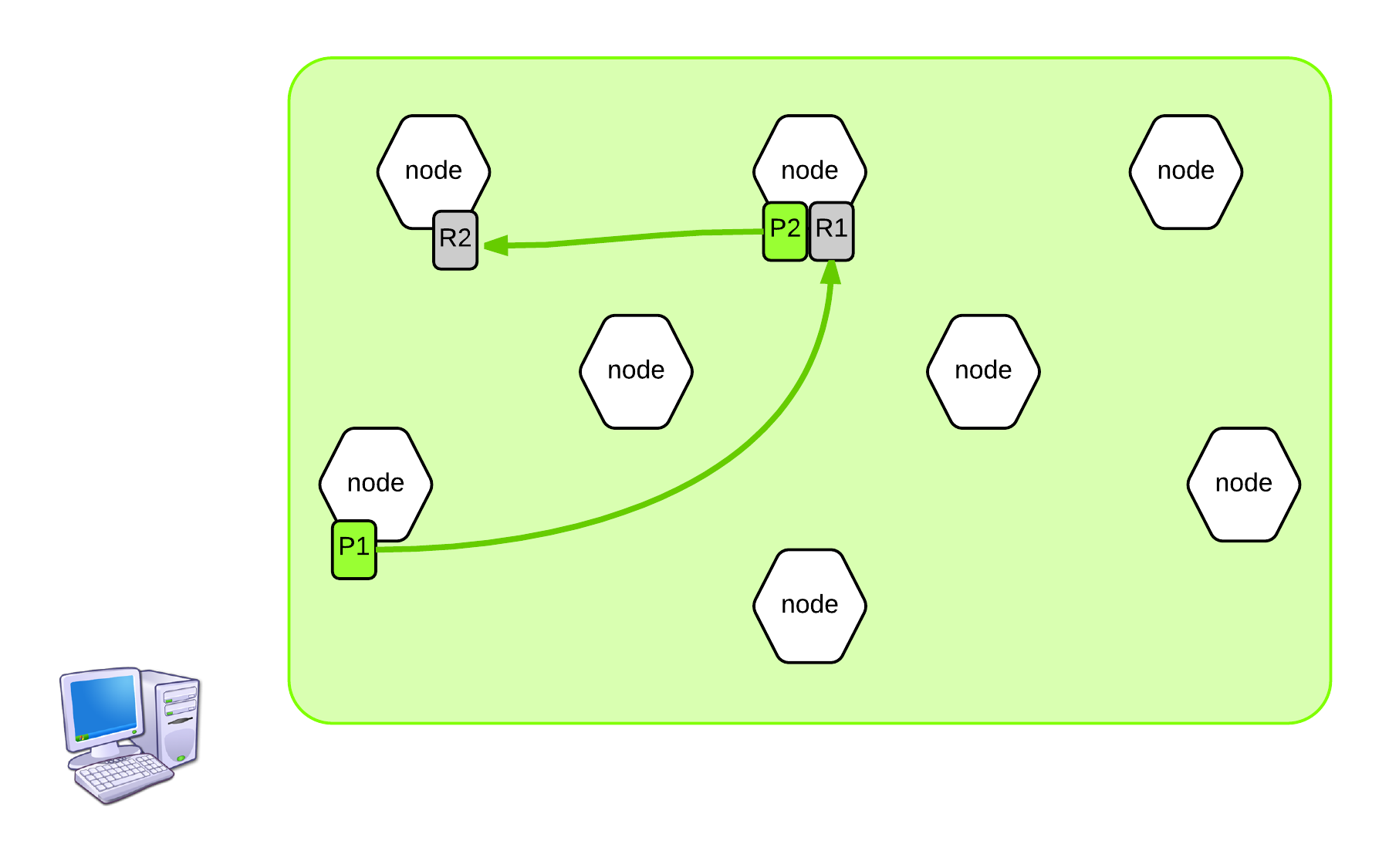

Replication provides failover

Two types of shards:

• Primary shards
• Replica shards

How-to

Cluster status

• Green - all shards are allocated
• Yellow - the primary shard is allocated but replicas are not
• Red - the shard is not allocated in the cluster

Use case #2: Multiple Failures

What if both nodes hosting PRIMARY and REPLICAS go down?

> Unless they all go down within a short timeframe, you are fine!

ElasticSeach uses Lucene

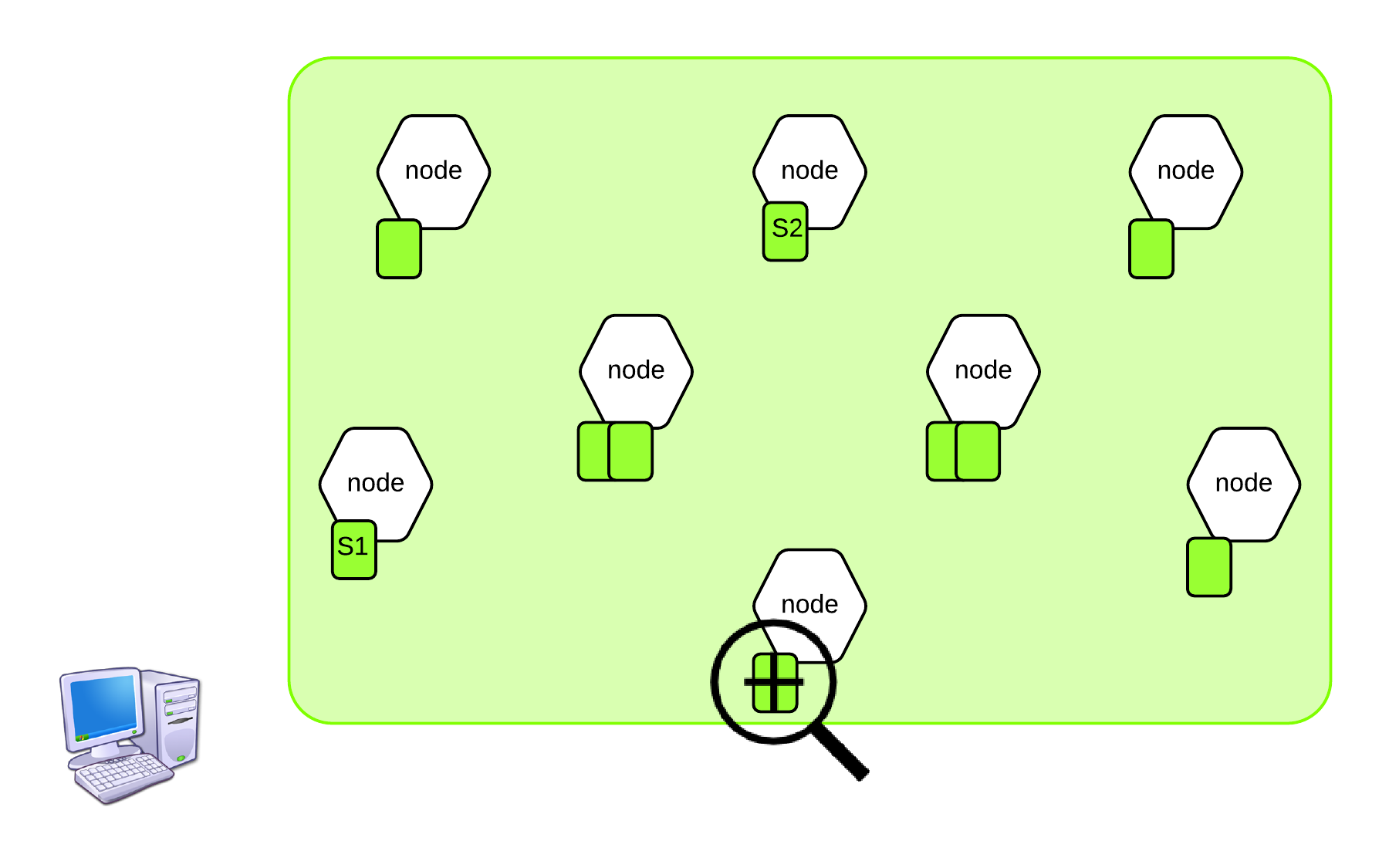

If we zoom in on one node and then on one shard...

Inverted index

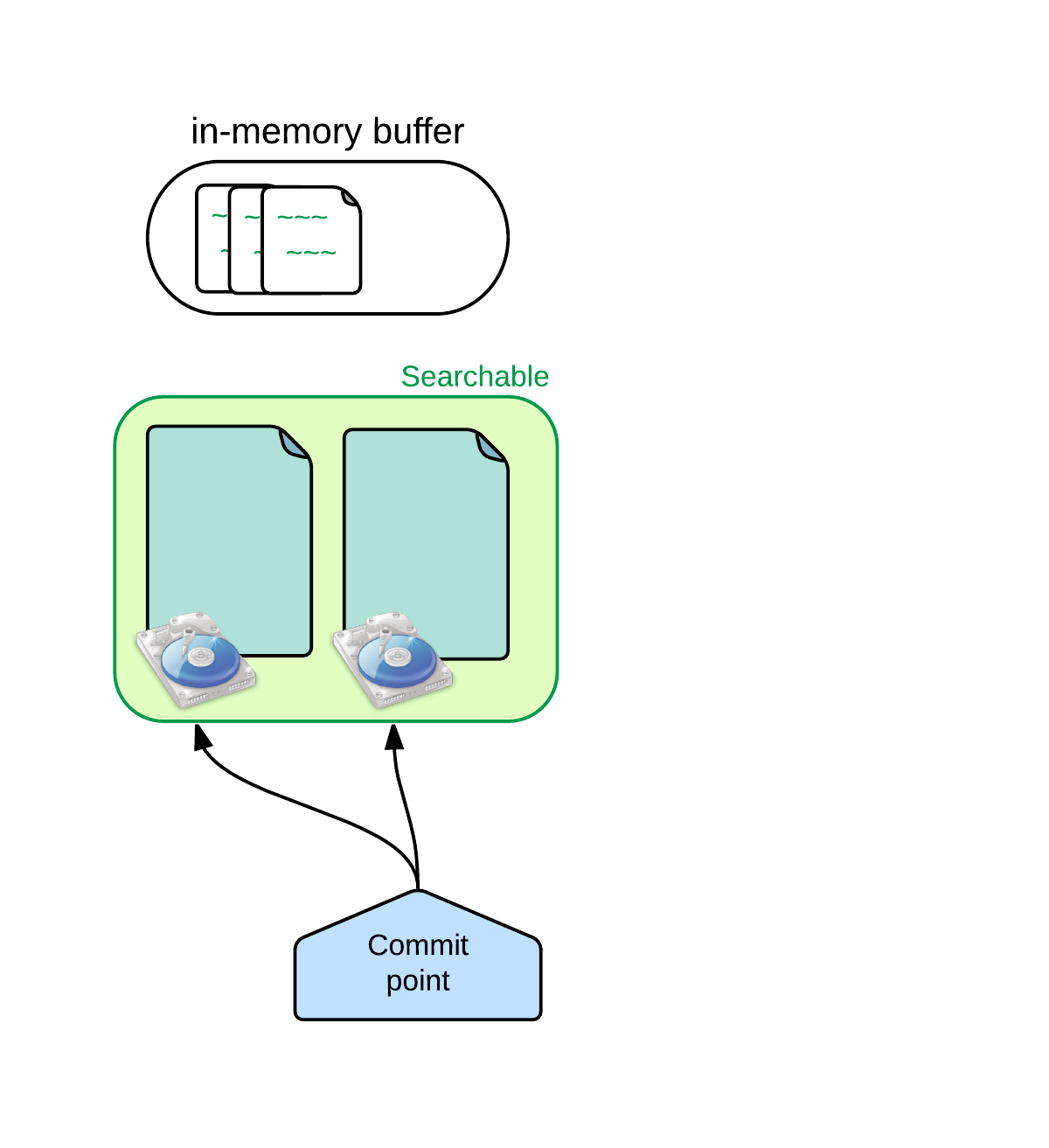

Before the commit

New documents in the in-memory buffer, ready to commit

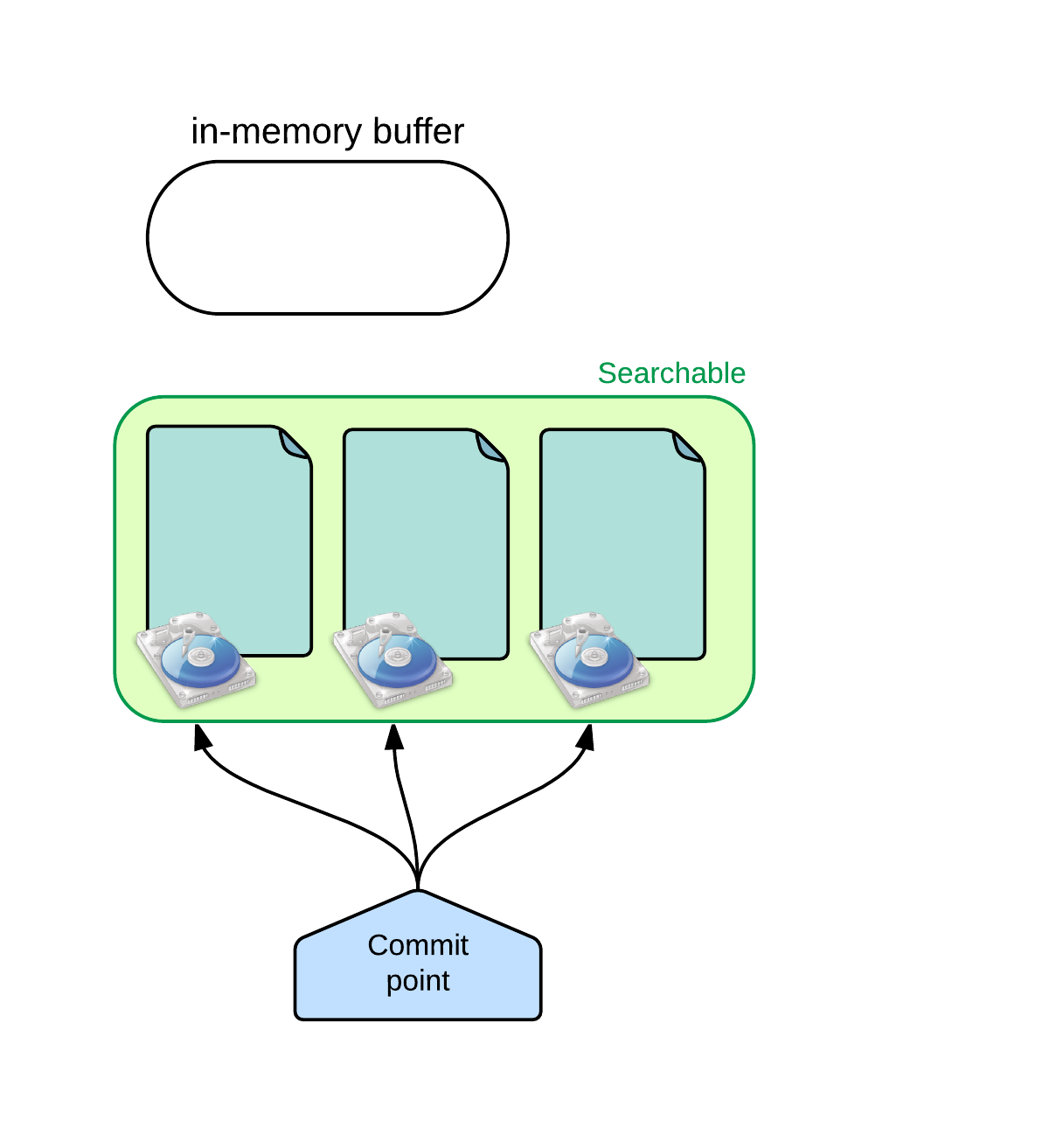

After the commit

A new segment is added to the commit point and the buffer is cleared

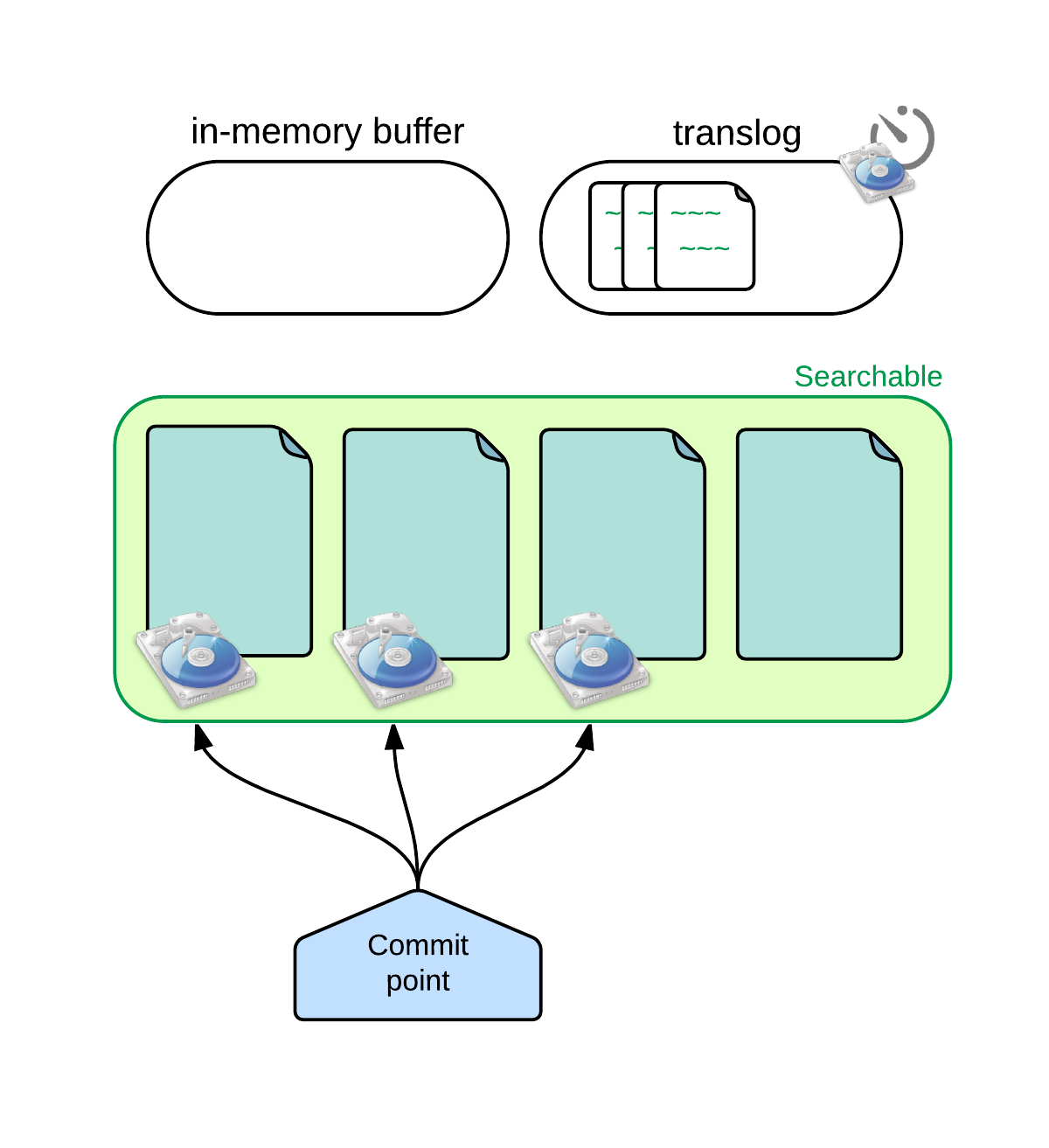

Transaction log = WAL

Documents are being written in buffer AND translog

Transaction log = WAL

The reader has been refreshed, buffer is cleared but not the translog

Transaction log = WAL

Other documents being ingested

Transaction log = WAL

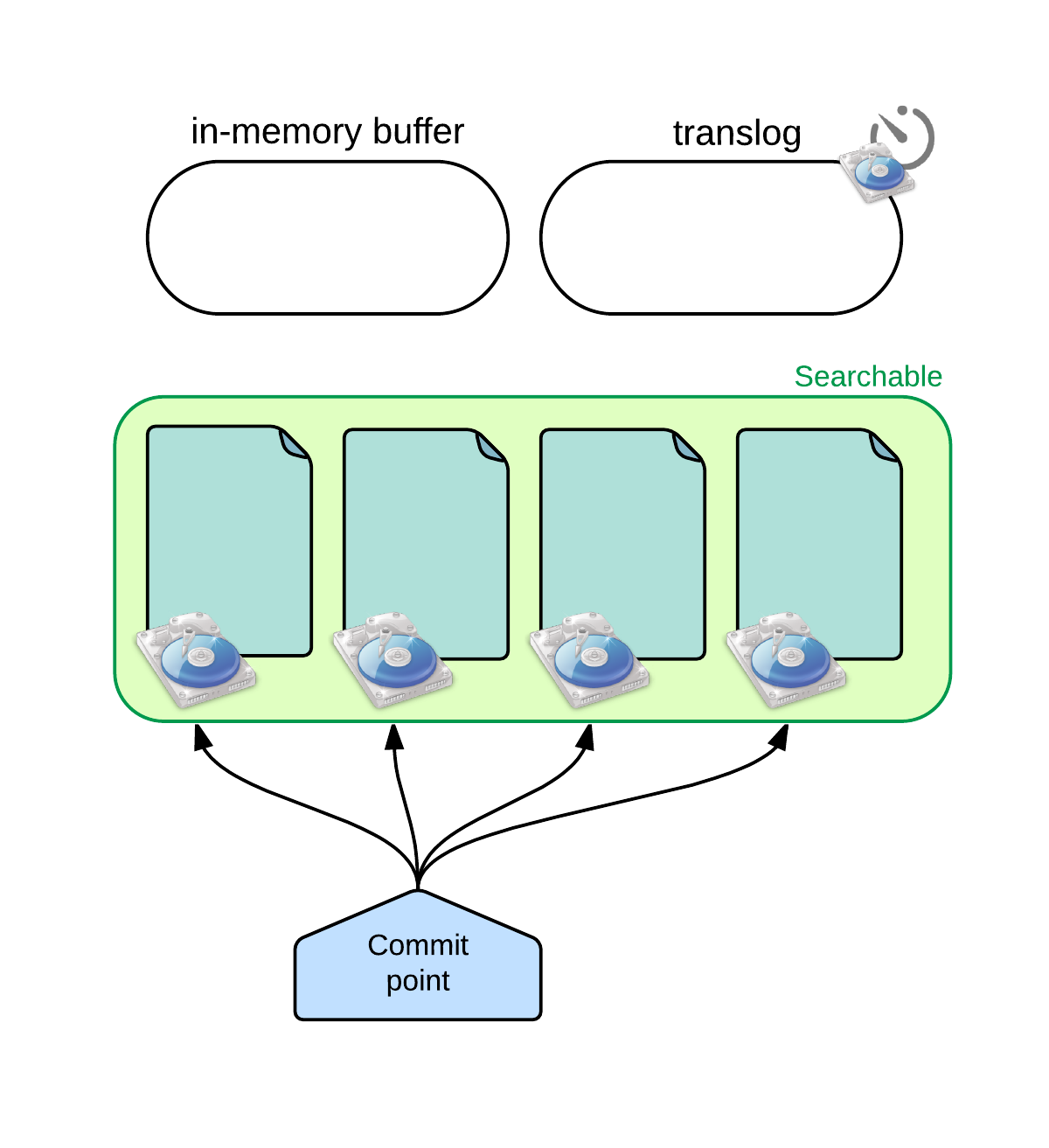

At some point, the translog is fsync'ed = "commit"

Network failures

Zen discovery

• Ping
• Fault detection:
  • Master -> other nodes
  • Nodes -> master
• Master election
• Cluster state updates

Master's duty

Maintain the global cluster state:

• Reassign shards when nodes come in or out
• Communicate the cluster state changes to other nodes

Use case #3: Master down

Dedicated masters

(in critical clusters)

How-to

Check if the master is at risk

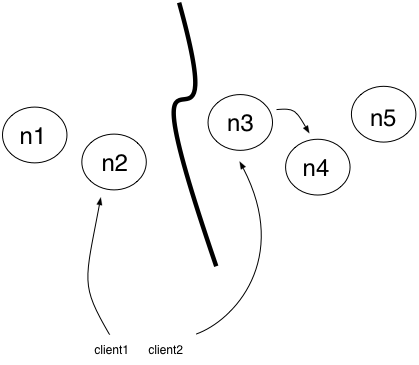

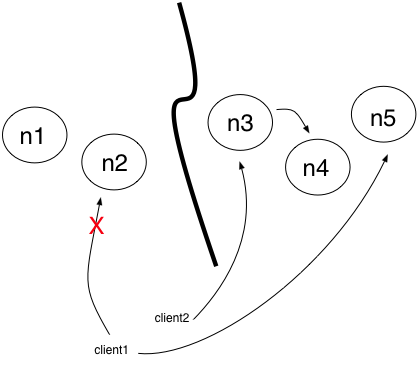

Use case #4: Network partition

There can only be one (master)!

Again, we expect resiliency

• The client should be able to index documents and search
• The cluster should reform once the network gets back to normal

We want to prevent a split brain from emerging

Split brain safeguard

minimum_master_nodes = (n / 2) + 1

Use Case #5: Intersection

The brain-melting issue

Issue #2488 on Github
Fixed in v1.4.0

Use Case #6

If a node takes a long time to answer?

> It is considered down.

Garbage collections

(stop-the-world)

ElasticSearch and Memory

Memory hungry software

Result: very large Heap result in long GCs

Reason: caches lots of data

Example: filters

Fielddata

Uninverting the inverted index

Used for :

• Sorting
• Aggregations
• Scripts
• Some relationships

How to lower GC duration?

Limit Heap Size!

Recommendations :

• 50% available RAM
• 32 Gb max (compressed oops)

Use doc_values instead of fielddata

• Built at indexing time rather than search time
• Increase overall index size, but not as limited as heap
• Since 1.4.0 => only 10-20% slower than in-memory fielddata

How to lower GC duration?

Other tips...

Beware of caches sizes!

Don't make it swap!

Tests, tests, tests!

One more thing...

OutOfMemoryException = node killer

ElasticSearch lets you avoid it: Circuit-breakers

- v1.0 : fielddata circuit-breaker

- v1.4: request and parent (global) circuit-breakers

Use case #7: data corruption

Demo time

Let's try with a corrupted snapshot...

Error! (and red status)

How does it work?

Since Lucene v4.8...

How does it work?

Lucene 4.8 <=> ElasticSearch 1.2.0

1.3.X : snapshot/restore and recovery

1.4.0 : translog!

Use case #8: No space left

That's really not good for the node

How to prevent a "no space left"?

Disk-based shard allocation

Feature added in v0.90.4

Enabled by default since v1.3.0

Disk-based shard allocation

Cluster-aware of disk usage

There are 2 tiers:

• First tier (>85%) : stop shard allocation to node
• Second tier (>90%) : relocate existing shards

Final advice regarding "No space left"

Monitor your disk usage!
